900 - M&G Breakaway System

900 - M&G Breakaway System

Part# 900

Description:

• Break-away unit for M&G supplimental braking system.

This is an optional kit designed to provide automatic braking action in your towed vehicle should your towed vehicle unexpectedly detach from your RV while traveling. We highly recommend this additional safety product to lessen the possible damage to your towed vehicle and to reduce harm to those near the detached vehicle. This kit only works with the M&G braking system.

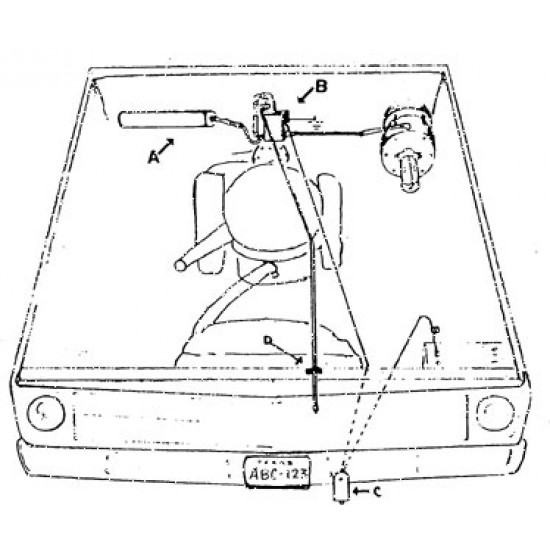

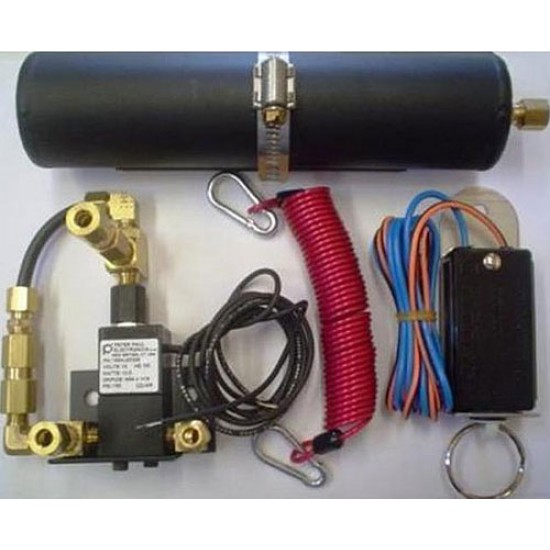

The M&G Breakaway System consists of three basic parts. A. small air tank, B. diverter valve, and C. trip switch. All these items will be located on the towed vehicle. The air tank is pressurized by applying the coach brakes fully, for one minute. (This should be done before each day's travel.)

In the event the towed vehicle should become detached from the coach, a small nylon cord attached to the rear of the coach, closes the trip switch. It, in turn, activates the diverter valve which allows air pressure from the small air tank to flow to the M&G cylinder, and applies the brakes on the towed vehicle.
