Factory Part |
Description |
Related Information |

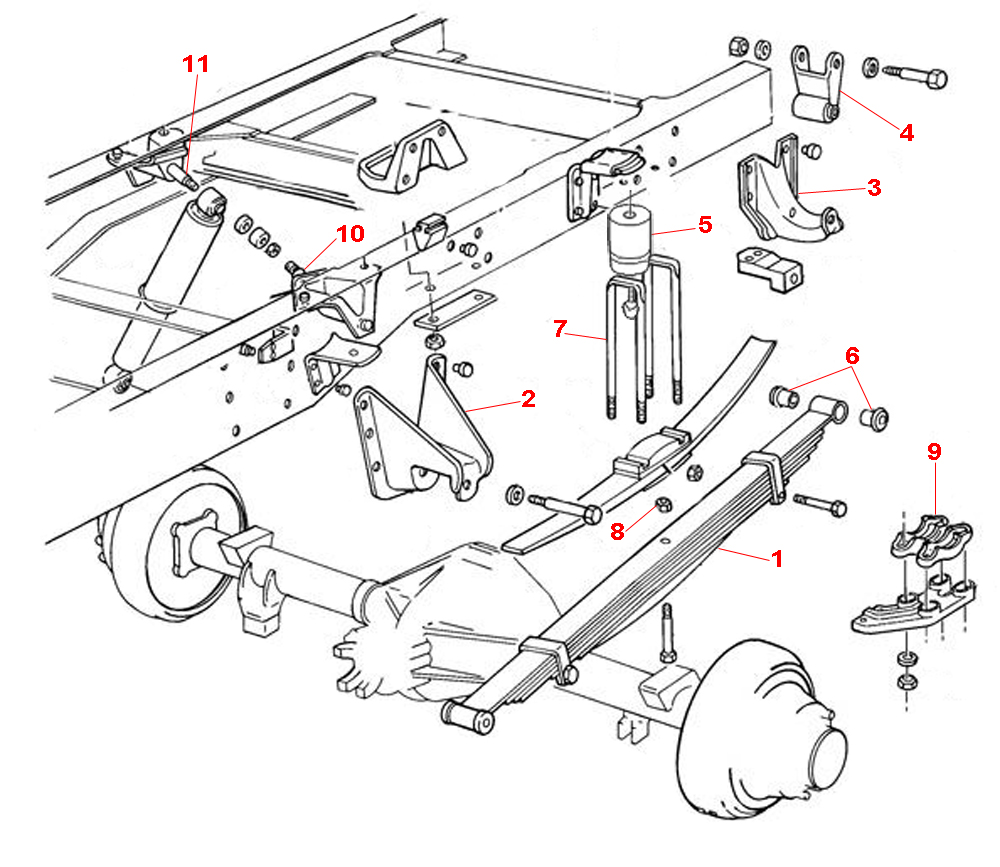

( 1 ) Left Spring Assembly |
4670 Lbs. |
|
( 1 ) Right Spring Assembly |
4670 Lbs. |
|
( 2 ) Front Spring Hanger |
||
( 3 ) Rear Spring Hanger |
||
( 4 ) Spring Shackle |
Same all positions |
|
( 5 ) Bump Stop |
||
( 6 ) Rear Spring Front Eye Bushing |
Sold Individually |
|
Bump Stop Bracket |
Discontinued. Original# 00337580 |
|
( 7 ) U-Bolt |
||
( 8 ) U-Bolt Nut |
||
U-Bolt Washer |
Not available - WASHER - FLAT, 1.24 X 0.75 X 0.119 |
|
( 9 ) U-Bolt Axle Plate |
Same both sides |
|
( 10 ) Upper Left Shock Mount |
||
( 11 ) Upper Right Shock Mount |
||
