1996-2000 P32 Chassis Parts Index

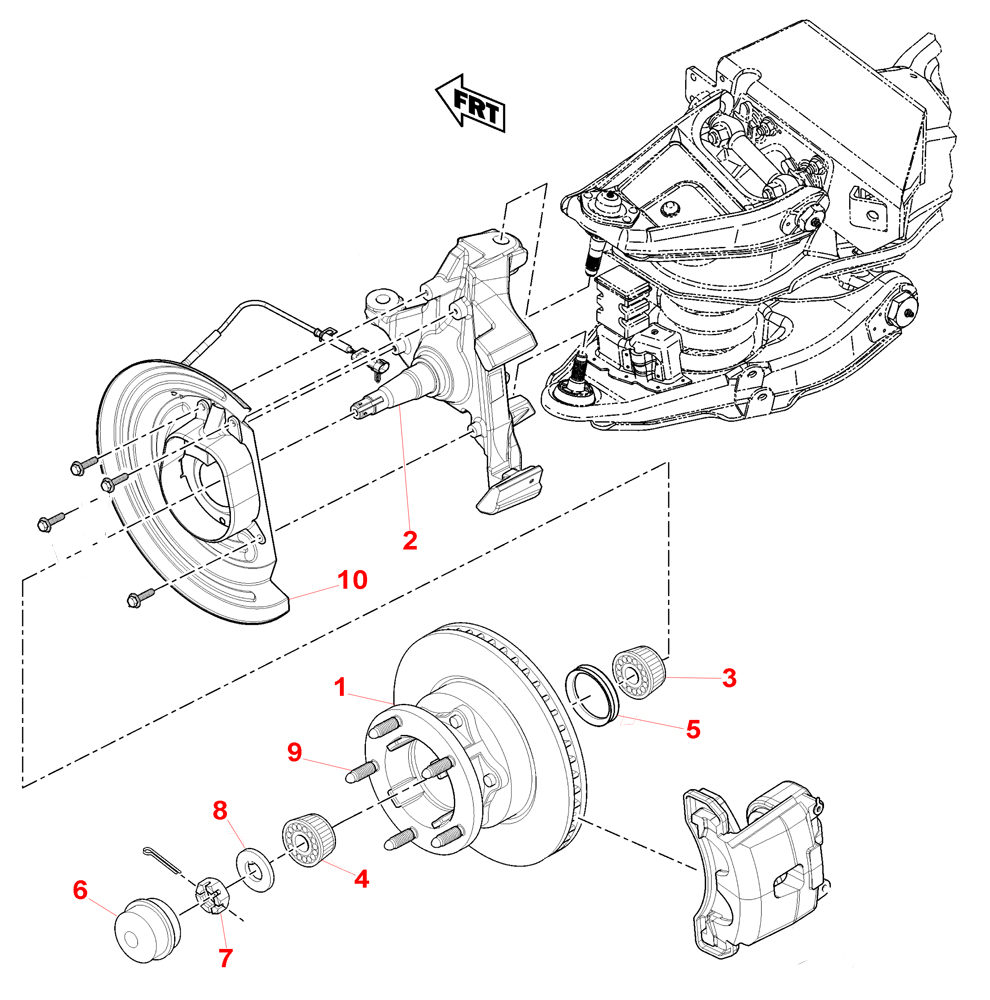

1996-2000 P32 Chassis Parts Index > FRONT AXLE

	Part Description	Related Information
	Front Axle Sub Frame
	( 1 ) Left Wheel Hub	Original# 15024279 - Hub only other parts sold separately.
	( 1 ) Right Wheel Hub	Original# 15024279 - Hub only other parts sold separately.
	( 2 ) Left Steering Knuckle	Original# 15993335 - Knuckle only other parts sold separately.
	( 2 ) Right Steering Knuckle	Original# 15993346 - Knuckle only other parts sold separately.
	( 3 ) Left Front Inner Bearing	Bearing and Race Set Includes Cone and Cup.
	( 4 ) Left Front Outer Bearing	Bearing and Race Set Includes Cone and Cup.
	( 3 ) Right Front Inner Bearing	Bearing and Race Set Includes Cone and Cup.
	( 4 ) Right Front Outer Bearing	Bearing and Race Set Includes Cone and Cup.
	( 5 ) Front Inner Seal
	Outer Gasket	Uses gray RTV silicone
	( 6 ) Outer Hub Cover
	( 7 ) Axle Nut
	Axle Nut Retainer	Uses a cotter pin as the axle nut retainer for the front axle.
	( 8 ) Axle Nut Thrust Washer
	( 9 ) Wheel Stud	Sold Individually
	Lug Nut	(Not Pictured) Sold Individually
	( 10 ) Left Splash Shield
	( 10 ) Right Splash Shield
		Notice: Wheel Speed Sensors, Rotors, and Calipers are found in the Brake Sections.
