Roadmaster Heavy Duty 1-5/8" Rear Auxiliary Sway Bar Kit for 2006-Current Ford F53 Class A Motor Homes (Part Number 1139-149)

Roadmaster Heavy Duty 1-5/8" Rear Auxiliary Sway Bar Kit for 2006-Current Ford F53 Class A Motor Homes (Part Number 1139-149)
Roadmaster Heavy Duty 1-5/8" Rear Auxiliary Sway Bar Kit for 2006-Current Ford F53 Class A Motor Homes (Part Number 1139-149)
: 1139-149
In Stock(10)
Based on 0 reviews.
$1,075.00
$1,236.25

Limited Time Sale!


Get an additional 5% off when added to your cart

Sale ends 02/28/2026 at 11:59:59
Add to Cart

Ford F53 Class A Motorhome Suspension, Steering, and Handling Upgrade

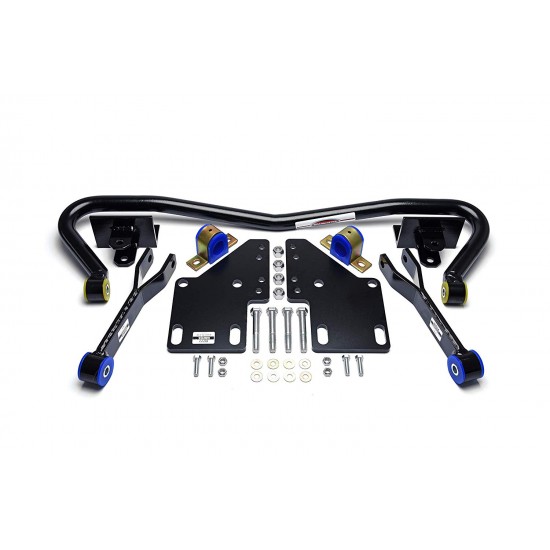

Roadmaster anti-sway bars deliver a noticeable improvement in vehicle stability and handling for today’s most popular motorhome chassis. The Roadmaster 1139-149 kit features a 1-5/8" diameter rear auxiliary sway bar meaning you retain the factory rear sway bar and install this one in addition. Includes heavy-duty polyurethane bushings for enhanced control and reduced body roll.

Designed for straightforward installation, Roadmaster anti-sway bars are precision-engineered from powder-coated 4140 chromoly steel and paired with high-performance polyurethane bushings for maximum durability and long-lasting support beyond factory components. Each kit includes all required mounting hardware, upgraded polyurethane bushings, and detailed installation instructions.


Applications:

  • 2006-2020 Ford F53 V10 20,500-22,000 GVWR but we recommend 1139-145 as it's an easier installation

  • 2006-2020 Ford F53 V10 24,000-26,000 GVWR

  • 2021-Current Ford F53 V8 16,000-26,000 GVWR


Special Notes:

  • Does not fit Toy Hauler motor homes such as Thor Outlaw

  • Installs with a flat plate that is held in place by the leaf spring u-bolts on the rear axle. Check to ensure there enough exposed u-bolt below the nut to accommodate the factory nut and washer once the 1/2" tick plate is installed above them. If there is not enough exposed u-bolt, will need to purchase longer u-bolt kit 590050-00 for square top style or 590050-10 for round top style.


Installation Instructions

Write a review

Please login or register to review

 The state of California requires that this warning be posted for people purchasing products that reside in California.

WARNING: Products may contain one or more chemicals known in the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Can I buy the mounting hardware and brackets separately? I had some punk raid my garage, and all I have left is the sway bar itself.
 ( Corey, 11/30/2020 )

Individual components from the kit can be purchased separately. You would purchase these directly from Roadmaster, not us.

Here is a link to the installation instructions which show a picture and corresponding part # for each component on page 2: https://ultrarvproducts.com/PDF/Roadmaster/1139-149-2.pdf

Have 2017 thor Outlaw 37BG Has 26000 lb chassis. Do you carry rear anti sway bar that will fit my unit? ( Val Walker, 06/06/2019 )
The 1139-149 would be the “most” correct rear sway bar for that application, however, we have seen where Thor put additional reinforcement plates on the frame rail that interfere with where the sway bar is designed to attach to the frame. I would print the installation instructions and then crawl underneath the coach to see if it looks like installation would be possible.
2019 Thor outlaw MB any idea if this will work? ( Shaun Clinkinbeard, 05/05/2019 )
We have seen where some Outlaw toy-haulers have additional supports and frame reinforcements which either prevent or make installation difficult. If you look at the installation instructions you can try to determine if yours has room to be installed.
Is this the right rear Anti-Sway bar for my RV ( John Hughes, 05/04/2019 )
I checked your VIN and it shows you have a 22,000 GVWR. The correct rear anti-sway bar for your chassis is the 1139-145.
Is there a REAR Anti-Sway bar for the F53 Motorhome that is 1 3/4"?
Thnx. ( Larry Cunningham, 01/15/2018 )
Yes the 1139-144 is a 1-3/4" rear anti-sway bar for the Ford F53 chassis: https://www.ultrarvproducts.com/1139-144-Rear-Anti-sway-Bar-For-Ford-F53-1-3-4
