US2078 - UltraStop Park Brake Module Replacement With UltraSave Kit

US2078 - UltraStop Park Brake Module Replacement With UltraSave Kit

PLEASE READ!!!

Order Shipment Notice:

Most orders are shipped within 24 hours from the order date. Orders placed on the weekend or after cutoff on Friday, and orders placed on select holidays are processed on the next business day. Please see our shipping terms for more information.

Part# US2078

Lead Time Notice

This product has a 3 day lead time from date ordered. So this product will not ship until 3 business days after the date of order.

Applications:

  • Workhorse Custom Chassis 2005 with J72 Parking Brake
  • Workhorse Custom Chassis W24 with J72 Parking Brake
  • Workhorse Custom Chassis W18 with J72 Parking Brake

Description:

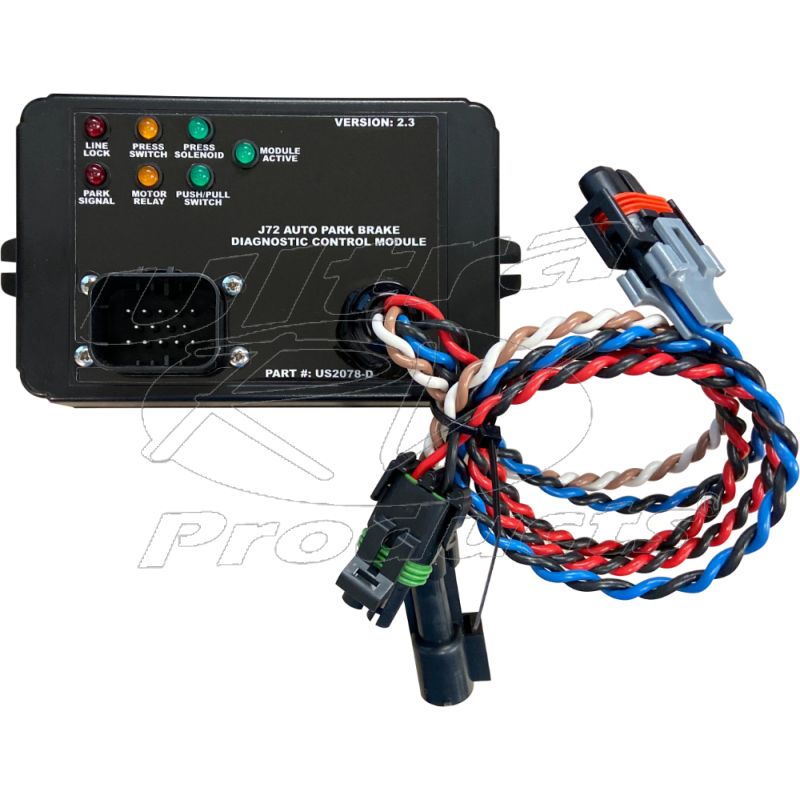

  • J72 Park Brake Module Replacement Kit that replaces the factory park brake controller.
  • J72 Park Brake UltraSave Valve Prevents the park brake from applying while the coach is in motion.
  • This kit is "Plug and Play" and installs in about 1.5 hours.

INSTALLATION INSTRUCTIONS


hello and good morning..im finishing installing the us 2078 ultra stop and control module kit i purchased from u a week ago..i would like to know if this system is self bleeding or it has to be bled and how to bleed it.your staff has been very helpfull..thanx in advance and have a great day... ( Amy Dewhirst, 09/01/2020 )
This is a self-bleeding system. You will just need to cycle the brake a few times. ( Support )
just recieved my us2078 ultra stop and control module replacement kit.your sales staff extremly helpfull.one question i forgot to ask is should i put teflon tape on all fittings or put them on as is thanks in advance and have a great day ( Amy Dewhirst, 08/19/2020 )
No, just install as it came. ( Support )
can i buy the just the electric pump motor for the original j27 brake assembly part no W8005667. thank you in advance.. ( Amy Dewhirst, 08/11/2020 )
Not through Workhorse. I'm not sure if you will be able to find one aftermarket or not.
hello and good day from nova scotia canada.i have a 2005 w24 chassis with the j72 auto brake..i have a slight static leak where the pump motor attaches to the alluminum port block.is there a gasket or o ring between the motor and alluminum port block.this the original j72 pump part noW8005667.thank you for your time and look forward to your reply. ( Amy Dewhirst, 08/11/2020 )
Sorry, no, this pump assembly and motor is non-serviceable through Workhorse. ( Support )
Does this prevent the parking brake from engaging while underway even in the event of either a voltage or hydraulic loss? If this occurs can the vehicle still be driven. ( Rick Crosby, 05/18/2016 )

Hi Rick,

In the event of an electrical issue or voltage loss the valve will not allow the brake to engage and will allow you to continue driving.

In the event of a hydraulic loss, as long as the leak is not at the brake itself or in the metal line between the valve and the brake it would prevent a lock up. If the leak is at the brake itself, the brake needs to be replaced anyways and the likelihood of a leak at that metal line is very low.

( Support )
